Beckhoff KL1104 KL2134 4-Channel Digital Input 24V DC

€1.040,00
€1.040,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Beckhoff KL1104 KL2134 4-Channel Digital Input 24V DCBeckhoff KL1104 KL2134 4-Channel Digital Input 24V DCBeckhoff KL1104 KL2134 4-Channel Digital Input 24V DCBeckhoff KL1104 KL2134 4-Channel Digital Input 24V DCBeckhoff KL1104 KL2134 4-Channel Digital Input 24V DCBeckhoff KL1104 KL2134 4-Channel Digital Input 24V DC

Beckhoff KL1104 KL2134 4-Channel Digital Input 24V DC

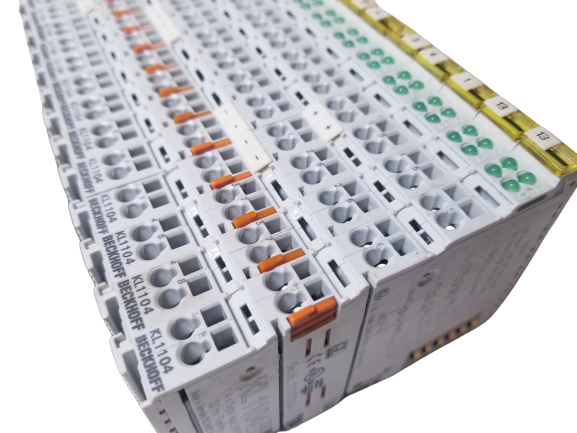

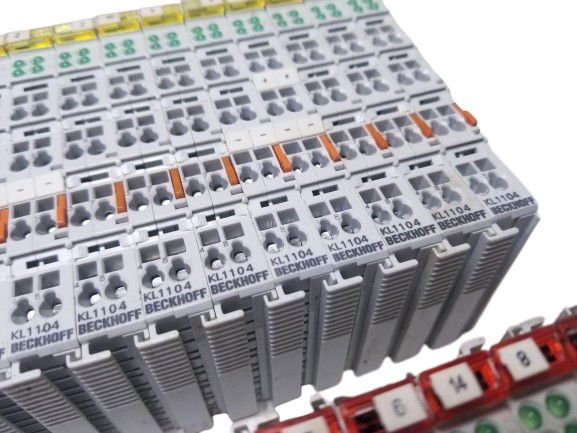

13x Beckhoff KL1104
Connection technology 2-/3-wire
Number of inputs 4
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage -3…+5 V
“1” signal voltage 15…30 V
Input filter typ. 3.0 ms
Input current typ. 5 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 4 inputs
Weight approx. 55 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Protect. rating/installation pos. IP20/variable

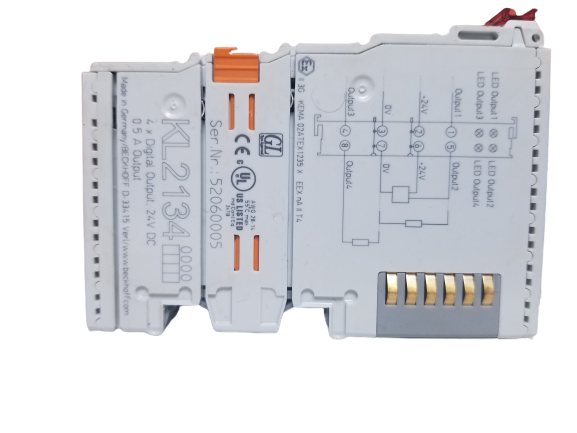

13x Beckhoff KL2134

Connection technology 2-/3-wire
Number of outputs 4
Nominal voltage 24 V DC (-15 %/+20 %)
Load type ohmic, inductive, lamp load
Max. output current 0.5 A (short-circuit proof) per channel
Short-circuit current < 2 A
Breaking energy < 150 mJ/channel
Reverse voltage protection yes
Electrical isolation 500 V (K-bus/field potential)
Current consumption K-bus typ. 9 mA
Bit width in the process image 4 outputs
Weight approx. 70 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Protect. rating/installation pos. IP20/variable

Price here is per Lot
